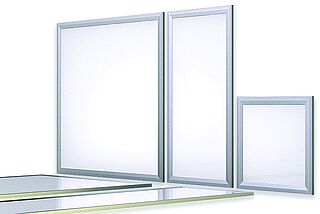

LED Panel CUPOLA

Energieeffiziente Beleuchtung für Büros, Labore, Praxen, Geschäfte und Ausstellungsräume.

Die flache Bauweise und das niedrige Gewicht ermöglichen einen schnellen Austausch herkömmlicher Rasterleuchten. Die Lichteinspeisung erfolgt über alle vier Seiten -dadurch geringe Wärmeentwicklung, homogene Lichtverteilung und garantierte Langlebigkeit.

Das Panel CUPOLA weist im Gegensatz zu Rasterleuchten mit KVG kein Flackern auf. Keine Ausstrahlung von UV-Licht.

Durch den UGR<19 ist das Panel blendarm und für Bildschirmarbeitsplätze geeignet.

Sondermaße auf Anfrage!

Technische Daten

Leistung 24, 30, 40, 50 Watt
Lichtleistung 2880, 3480, 3540, 3600, 4500, 4600, 4800, 4900, 5750, 5800, 5900, 6000, 6100 lm
Lichtfarbe 2700-3200, 4000-4500, 5000, 5000-5500, 6000-6500 Kelvin
Eingangspannung AC 100-240 V - 50/60 Hz
Effizienz 120lm/W
Abstrahlwinkel 160°
Farbwiedergabe CRI >80
Dimmung optional
Schutzart IP40
Gehäuse Alumimium
Cover matt
Umgebungstemperatur -20°C bis +50°C
Lebensdauer L70 (25°C) 50.000 Stunden bei 25°C
Garantie 3 Jahre
Gewicht ca. 3,0kg
Besonderheit UGR<19 für Bildschirmarbeitsplätze geeignet
Montage als Einlege- oder Trockenbauversion erhältlich

Downloads

pdf Produktblatt

Aktuelle Version des Datenblatts

download jetzt herunterladen
ARTIKELNR BEZEICHNUNG Maße in mm Abstrahl-winkel Cover Dimmung Watt Kelvin Lumen
109298 LED Panel CUPOLA Einlege 24W 300x300x11mm 5000K 300x300x11 160° matt - 24 5000 2880
104116 LED Panel CUPOLA Einlege 40W 600x600x11 2700-3200K 600x600x11 160° matt - 40 2700-3200 4500
103655 LED Panel CUPOLA Einlege 40W 600x600x11mm 4000-4500K 600x600x11 160° matt - 40 4000-4500 4600
103656 LED Panel CUPOLA Einlege 40W 600x600x11mm 5000K 600x600x11 160° matt - 40 5000 4800
103657 LED Panel CUPOLA Einlege 40W 600x600x11mm 6000-6500K 600x600x11 160° matt - 40 6000-6500 4900
104115 LED Panel CUPOLA Einlege 50W 600x600x11mm 2700-3200K 600x600x11 160° matt - 50 2700-3200 5800
103658 LED Panel CUPOLA Einlege 50W 600x600x11mm 4000-4500K 600x600x11 160° matt - 50 4000-4500 5900
103659 LED Panel CUPOLA Einlege 50W 600x600x11mm 5000K 600x600x11 160° matt - 50 5000 6000
103661 LED Panel CUPOLA Einlege 50W 600x600x11mm 6000-6500K 600x600x11 160° matt - 50 6000-6500 6100
104576 LED Panel CUPOLA Einlege 30W 620x620x11mm 2700-3200K 620x620x11 160° matt - 30 2700-3200 3480
104578 LED Panel CUPOLA Einlege 30W 620x620x11mm 5000K 620x620x11 160° matt - 30 5000 3600
107744 LED Panel CUPOLA Einlege 30W 620x620x11mm 5000K dimmbar 1-10V 620x620x11 160° matt 1-10 V 30 5000 3600
104577 LED Panel CUPOLA Einlege 30W 620x620x11mm 4000-4500K 620x620x11 160° matt - 30 4000-4500 3540
104579 LED Panel CUPOLA Einlege 30W 620x620x11mm 6000-6500K 620x620x11 160° matt - 30 6000-6500 3600
103663 LED Panel CUPOLA Einlege 40W 620x620x11mm 5000K 620x620x11 160° matt - 40 5000 4800
108985 LED Panel CUPOLA Einlege 40W 620x620x11mm 5000K IP65 feuchtraumgeeignet 620x620x11 160° matt - 40 5000 4800
105376 LED Panel CUPOLA Einlege 40W 620x620x11mm 5000K dimmbar 1-10V 620x620x11 160° matt 0-10 V 40 5000 4800
104117 LED Panel CUPOLA Einlege 40W 620x620x11 2700-3200K 620x620x11 160° matt - 40 2700-3200 4500
104118 LED Panel CUPOLA Einlege 40W 620x620x11mm 2700-3200K dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 2700-3200 4500
103662 LED Panel CUPOLA Einlege 40W 620x620x11mm 4000-4500K 620x620x11 160° matt - 40 4000-4500 4800
103665 LED Panel CUPOLA Einlege 40W 620x620x11mm 4000-4500K dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 4000-4500 4600
103664 LED Panel CUPOLA Einlege 40W 620x620x11mm 6000-6500K 620x620x11 160° matt - 40 6000-6500 4900
103667 LED Panel CUPOLA Einlege 40W 620x620x11mm 6000-6500K dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 6000-6500 4900
103669 LED Panel CUPOLA Einlege 50W 620x620x11mm 5000K 620x620x11 160° matt - 50 5000 6000
104119 LED Panel CUPOLA Einlege 50W 620x620x11mm 2700-3200K 620x620x11 160° matt - 50 2700-3200 5800
103668 LED Panel CUPOLA Einlege 50W 620x620x11mm 4000-4500K 620x620x11 160° matt - 50 4000-4500 5900
105308 LED Panel CUPOLA Einlege 30W 1200x300x11mm 2700-3200K 1200x300x11 160° matt - 30 2700-3200 4500
105309 LED Panel CUPOLA Einlege 30W 1200x300x11mm 4000-4500K 1200x300x11 160° matt - 30 4000-4500 4600
105310 LED Panel CUPOLA Einlege 30W 1200x300x11mm 5000K 1200x300x11 160° matt - 30 5000 4800
107026 LED Panel CUPOLA Einlege 30W 1200x300x11mm 5000K DALI 1200x300x11 160° matt DALI 30 5000 4800
105311 LED Panel CUPOLA Einlege 30W 1200x300x11mm 6000-6500K 1200x300x11 160° matt - 30 6000-6500 4900
104120 LED Panel CUPOLA Einlege 40W 1200x300x11mm 2700-3200K 1200x300x11 160° matt - 40 2700-3200 4500
103695 LED Panel CUPOLA Einlege 40W 1200x300x11mm 4000-4500K 1200x300x11 160° matt - 40 4000-4500 4600
106360 LED Panel CUPOLA Einlege 40W 1200x300x11mm 4000-4500K dimmbar 1-10V 1200x300x11 160° matt 0-10 V 40 4000-4500 4600
103694 LED Panel CUPOLA Einlege 40W 1200x300x11mm 5000K 1200x300x11 160° matt - 40 5000 4800
107581 LED Panel CUPOLA Einlege 40W 1200x300x11mm 5000K dimmbar 1-10V 1200x300x11 160° matt 0-10 V 40 5000 4800
107027 LED Panel CUPOLA Einlege 40W 1200x300x11mm 5000K DALI 1200x300x11 160° matt DALI 40 5000 4800
103696 LED Panel CUPOLA Einlege 40W 1200x300x11mm 6000-6500K 1200x300x11 160° matt - 40 6000-6500 4900
105543 LED Panel CUPOLA Einlege 50W 1200x300x11mm 5000K 1200x300x11 160° matt - 50 5000-5500 5800
109195 LED Panel CUPOLA Einlege 50W 1200x600x11mm 5000K 1200x600x11 160° matt - 50 4000-4500 5750
103671 Metallrahmen für LED Panel CUPOLA Alu 600x600mm 600x600 Alu
115603 Metallrahmen für LED Panel CUPOLA Alu 620x620mm 620x620 Alu
115604 Metallrahmen für LED Panel CUPOLA Alu 1200x300mm 1200x300 Alu
112169 Abhänge Set für LED Panel CUPOLA
115264 Y-Seile für Panel CUPOLA
104170 LED Panel CUPOLA Trockenbau 40W 620x620x11mm Außenmaß 640x640x11mm 2700-3200K 620x620x11 160° matt - 40 2700-3200 4500
104174 LED Panel CUPOLA Trockenbau 40W 620x620mm Außenmaß 640x640x11mm 2700-3200K dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 2700-3200 4500
104171 LED Panel CUPOLA Trockenbau 40W 620x620x11mm Außenmaß 640x640x11mm 4000-4500K 620x620x11 160° matt - 40 4000-4500 4600
104175 LED Panel CUPOLA Trockenbau 40W 620x620x11mm Außenmaß 640x640x11mm 4000-4500 dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 4000-4500 4600
105730 LED Panel CUPOLA Trockenbau 40W 620x620mm Außenmaß 640x640x11mm 4000-4500 dimmbar DALI 620x620x11 160° matt DALI 40 4000-4500 4600
104172 LED Panel CUPOLA Trockenbau 40W 620x620x11mm Außenmaß 640x640x11mm 5000K 620x620x11 160° matt - 40 5000 4800
104176 LED Panel CUPOLA Trockenbau 40W 620x620x11mmAußenmaß 640x640x11mm 5000K dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 5000 4800
104173 LED Panel CUPOLA Trockenbau 40W 620x620x11mm Außenmaß 640x640x11mm 6000-6500 620x620x11 160° matt - 40 6000-6500 4900
104177 LED Panel CUPOLA Trockenbau 40W 620x620x11mm Außenmaß 640x640x11mm 6000-6500K dimmbar 0-10V 620x620x11 160° matt 0-10 V 40 6000-6500 4900
104178 LED Panel CUPOLA Trockenbau 50W 620x620x11mm Außenmaß 640x640x11mm 2700-3200K 620x620x11 160° matt - 50 2700-3200 5750
104179 LED Panel CUPOLA Trockenbau 50W 620x620x11mm Außenmaß 640x640x11mm4000-4500 620x620x11 160° matt - 50 4000-4500 5750
104180 LED Panel CUPOLA Trockenbau 50W 620x620x11mm Außenmaß 640x640x11mm 5000K 620x620x11 160° matt - 50 5000 6000
104181 LED Panel CUPOLA Trockenbau 50W 620x620x11mm Außenmaß 640x640x11mm 6000-6500K 620x620x11 160° matt - 50 6000-6500 6100
104182 LED Panel CUPOLA Trockenbau 40W 1200x300x11mm 2700-3200K 1200x300x11 160° matt - 40 2700-3200 4500
104183 LED Panel CUPOLA Trockenbau 40W 1200x300x11mm 4000-4500K 1200x300x11 160° matt - 40 4000-4500 4600
104184 LED Panel CUPOLA Trockenbau 40W 1200x300x11mm 5000K 1200x300x11 160° matt - 40 5000 4800
104185 LED Panel CUPOLA Trockenbau 40W 1200x300x11mm 6000-6500K 1200x300x11 160° matt - 40 6000-6500 4900
